0610-221107-633

• Boosted CPU, external memory and higher capacity relays

• Light output is 12 V DC 1,3 A

• Integration of the in.mix 300 color system on the main board

• in.lu.me cables and LED lights can be connected directly to the in.ye-V3

• New terminal block, onboard AMP connectors, evolved cable strain relief

• Pathway to connected accessories with faster communication

• Preloaded configuration allows fast and easy installation

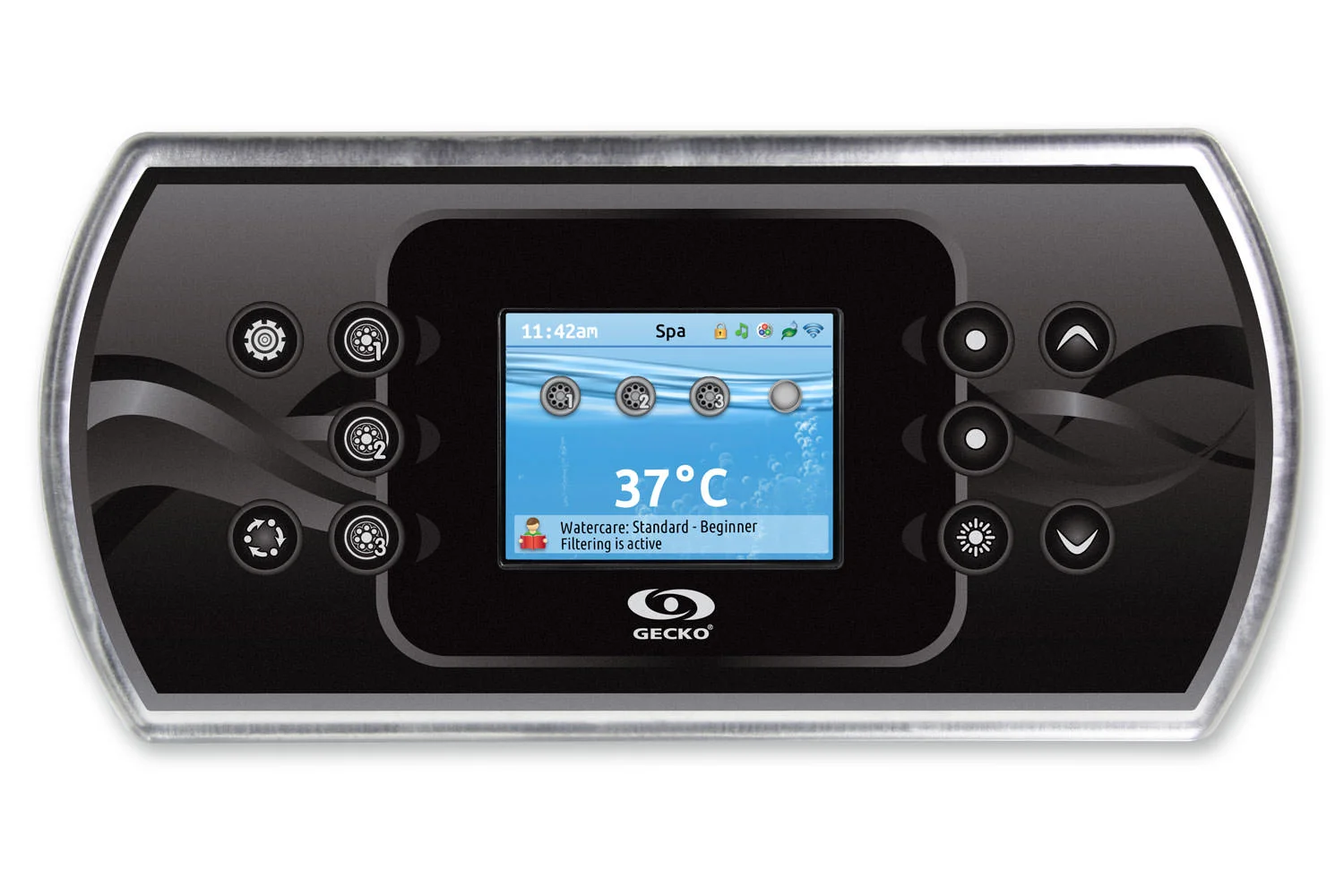

• in.touch 2 module compatible

• in.Temp Heat pump ready (extension board)

• Supports 1, 2 and 3 phase input power

• Standard 3.0 kW, 2” x 15” flow thru heater

• Wide selection of keypads (Auto-detects selected keypad)

• Swim mode for swim spa (k1000/1001 keypad needed)

• Temperature probe is built into the heater

• Overheat protection

• Self-Diagnostic

• Programmable filter cycles

• IPx5 level of waterproofing

• Dimensions: (W x H x D) 498 mm x 273 mm x 115 mm

Important: This in.ye system is designed to work seamlessly with in.temp heat pumps. To enable this compatibility, ensure the inclusion of the 0610-100006 in.ye-v3 extension board B-EXT-COM-RS485.

Suggested retail price:
$
