0608-521033 : IN.GRID: 4 SWITCH + CO + HEAT PUMP CONTROL

0608-521033

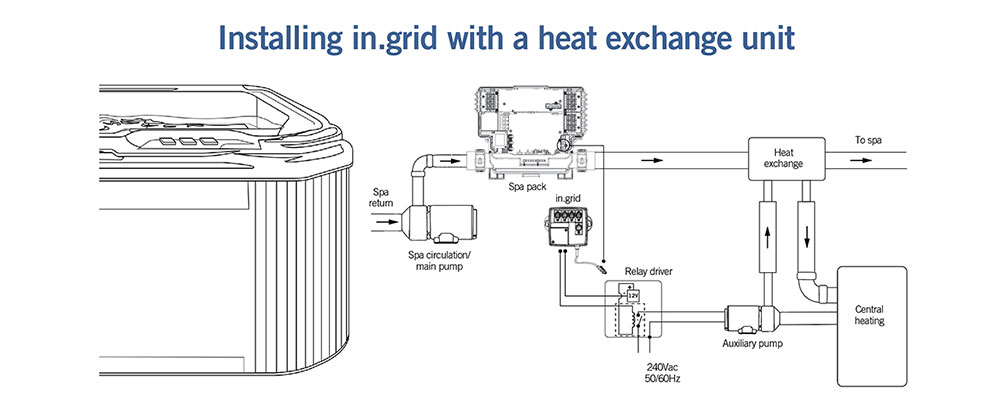

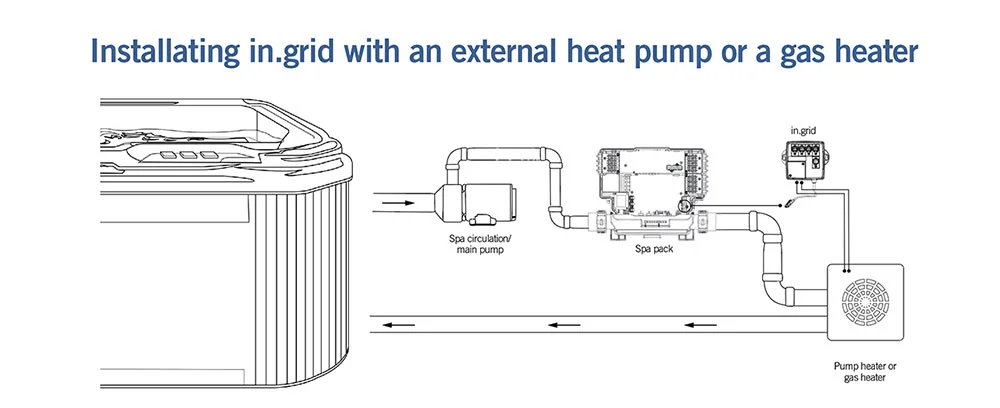

A flexible way to control your external heating source

• Perfect for selecting, using and synchronizing alternative heat sources
• 4 single switches and one CO connector for your accessories
• Energy saving
• The choice between 4 modes of operation:

- Internal: electrical heater only
- External: secondary heat source only
- Both: electrical heater & secondary heat source
- Smart: secondary heat source & electrical heater if needed (1°C below set point)

• Water must be heated by the external source after the spa pack

Suggested retail price:
$298.64 USD

You must have an approved account to be able to purchase items from the Gecko Depot Europe online store.

If you already have an account, please login.

If you do not have an account, please submit an application form. Upon your application approval, you will receive by email your discount level. Please, allow 24 hours on weekdays for the process.

Unavailable

Quantity

Adding... Added to cart!

IF YOU ARE INTERESTED IN OUR IN.GRID, YOU SHOULD ALSO CONSIDER THE FOLLOWING ITEMS.

IN.GRID IS FULLY COMPATIBLE WITH:

0611-221104-691 : IN.YT-8 with RS485 on-board

$1,453.38

0611-221104-691

Supports keypads, heater, a 12 V AC light,
and 8 configurable relays
K25 relay installed
Solid-state water flow detection: No pressure switch to adjust
IPX5 rated waterproof design
Preloaded configuration allows fast and easy installation
in.touch 2 & in.touch 3 module compatible
Connector: AMP, Quick Connect
Supports 1, 2 and 3 phase input power
Standard 3 kW, 2” x 15” flow thru heater (minimum of 75 l/min required)
Aeware keypad compatible
Temperature probe is built into the heater
Overheat protections
Self-Diagnostic
Programmable filter cycles
Corrosion-free enclosure
with RS485 (in.temp compatible)
Swim mode software pre-installed

Suggested retail price:
$1453.38 USD

0610-221108-634 : IN.YE-3-H3.0-P21-AMP-CE-V3U-GD4

$1,065.41

0610-221108-634

Important: This in.ye system is designed to work seamlessly with in.temp heat pumps. To enable this compatibility, ensure the inclusion of the 0610-100006 in.ye-v3 extension board B-EXT-COM-RS485.

Suggested retail price:
$1065.41 USD

0610-221107-633 : IN.YE-5-H3.0-AMP-CE-V3U-GD5

$1,077.02

0610-221107-633

Boosted CPU, external memory and higher capacity relays
Light output is 12 V DC 1,3 A
Integration of the in.mix 300 color system on the main board
in.lu.me cables and LED lights can be connected directly to the in.ye-V3
New terminal block, onboard AMP connectors, evolved cable strain relief
Pathway to connected accessories with faster communication
Preloaded configuration allows fast and easy installation
in.touch 2 & in.touch3 module compatible
in.Temp Heat pump ready (extension board)
Supports 1, 2 and 3 phase input power
Standard 3.0 kW, 2” x 15” flow thru heater
Wide selection of keypads (Auto-detects selected keypad)
Swim mode for swim spa (k1000/1001 keypad needed)
Temperature probe is built into the heater
Overheat protection
Self-Diagnostic
Programmable filter cycles
IPx5 level of waterproofing
Dimensions: (W x H x D) 498 mm x 273 mm x 115 mm

Important: This in.ye system is designed to work seamlessly with in.temp heat pumps. To enable this compatibility, ensure the inclusion of the 0610-100006 in.ye-v3 extension board B-EXT-COM-RS485.

The add-on board 0610-100008 is required for configuration where the A6 output is being used.

Suggested retail price:
$1077.02 USD
