0607-008030 : IN.K806 AND OVERLAY 0607-005012 : IN.K450-3OP AND OVERLAY

0607-008033 : IN.K506 AND OVERLAY

0607-008033

Includes:

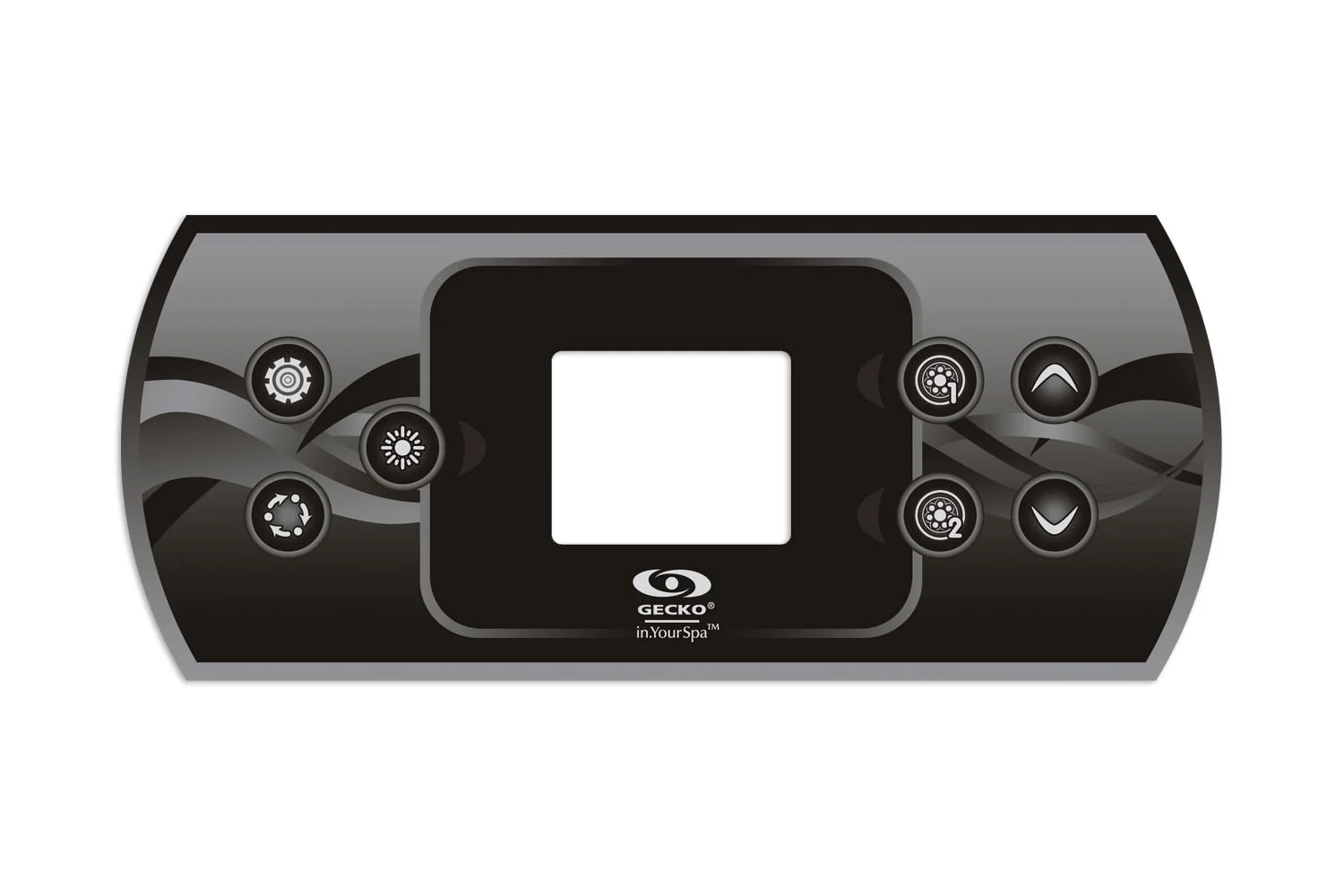

in.k506 Color keypad and overlay (9916-101495)

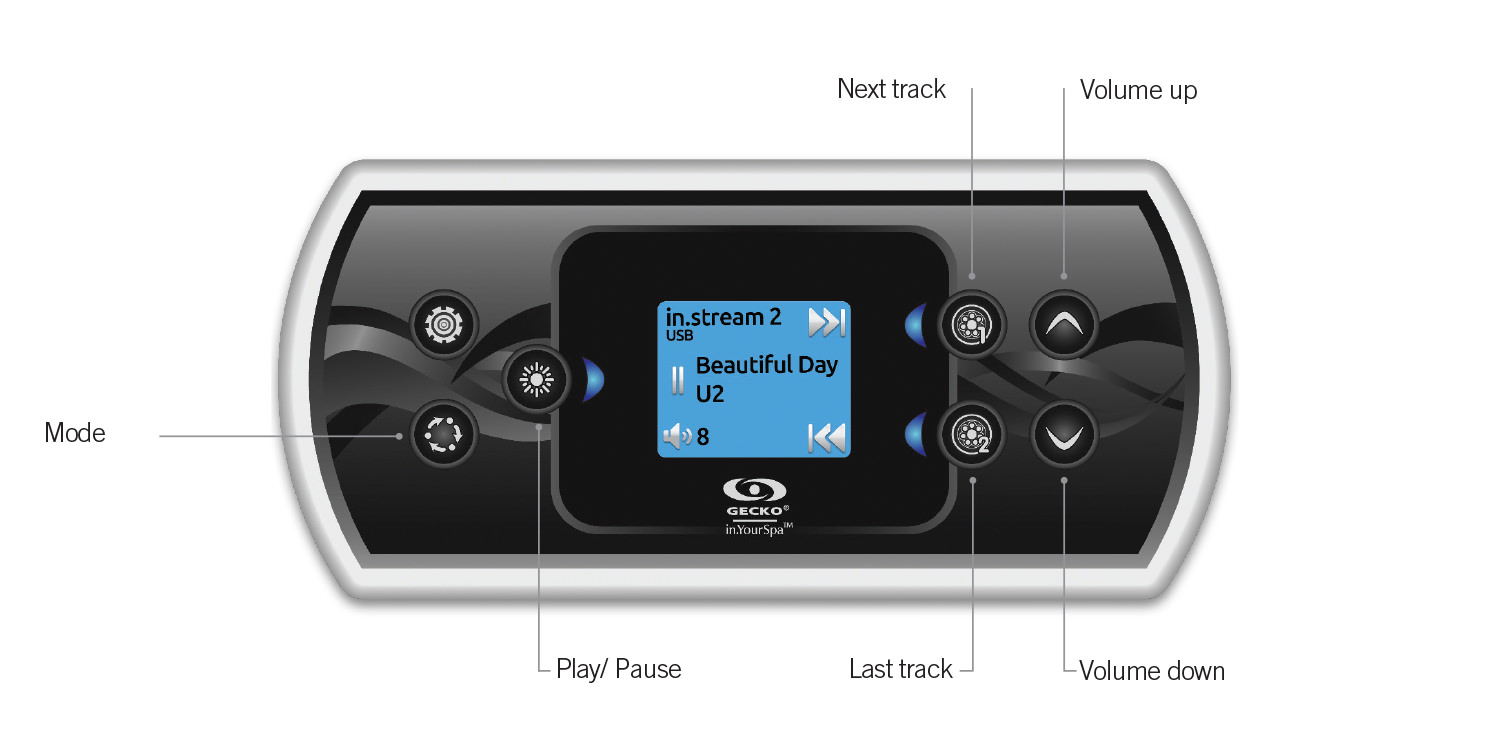

7 buttons: Settings/Light/Mode/Pump 1/Pump 2/Up/Down

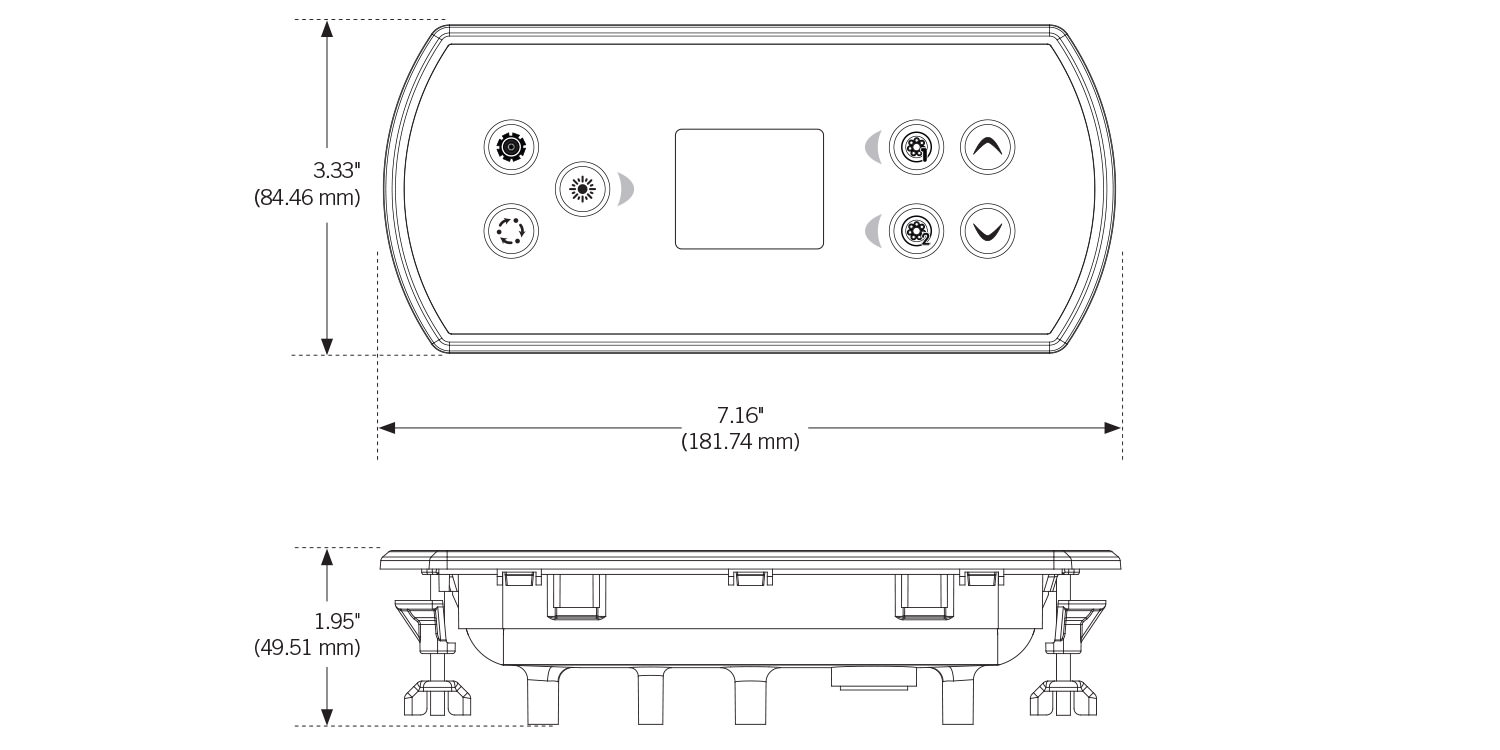

Dimensions: 18.2 x 8.46 cm (7.16’’ x 3.33’’)
Cord length: 3 m (10’)
Compatible with: Y Series systems
Installation: MUST be installed on the OUTSIDE edge of the hot tub.

Suggested retail price:
$430.20 USD

You must have an approved account to be able to purchase items from the Gecko Depot Europe online store.

If you already have an account, please login.

If you do not have an account, please submit an application form. Upon your application approval, you will receive by email your discount level. Please, allow 24 hours on weekdays for the process.

Unavailable

Quantity

Adding... Added to cart!

IF YOU ARE INTERESTED IN OUR IN.K500 KEYPAD, YOU SHOULD ALSO CONSIDER THE FOLLOWING ITEMS.

WORKS WITH

0611-221104-691 : IN.YT-8 with RS485 on-board

$1,453.38

0611-221104-691

Supports keypads, heater, a 12 V AC light,
and 8 configurable relays
K25 relay installed
Solid-state water flow detection: No pressure switch to adjust
IPX5 rated waterproof design
Preloaded configuration allows fast and easy installation
in.touch 2 & in.touch 3 module compatible
Connector: AMP, Quick Connect
Supports 1, 2 and 3 phase input power
Standard 3 kW, 2” x 15” flow thru heater (minimum of 75 l/min required)
Aeware keypad compatible
Temperature probe is built into the heater
Overheat protections
Self-Diagnostic
Programmable filter cycles
Corrosion-free enclosure
with RS485 (in.temp compatible)
Swim mode software pre-installed

Suggested retail price:
$1453.38 USD

0610-221108-634 : IN.YE-3-H3.0-P21-AMP-CE-V3U-GD4

$1,065.41

0610-221108-634

Important: This in.ye system is designed to work seamlessly with in.temp heat pumps. To enable this compatibility, ensure the inclusion of the 0610-100006 in.ye-v3 extension board B-EXT-COM-RS485.

Suggested retail price:
$1065.41 USD

0612-221040-430 : IN.YJ-3-V3-CE-2PC-GD1

$689.73

0612-221040-430

in.yj supports 3 configurable outputs, and is compatible with the 1.3, 2 & 3kW heater (sold separately) and a standard 12V DC light (6W max). Ideal for entry level spas with 1 or 2 pumps and ozonator tied to pump 1 low. Direct connection for Audio available. Works with keypads in.k800, in.k500, in.k1000, in.k200, in.k300, in.k330, in.k8, in.k450, in.k600 static, in.k120 (auxiliary) and in.touch mobile remote control.

Minimum Set Point: 8.0 °C
Maximum Set Point: 41.0 °C(with override function)

Suggested retail price:
$689.73 USD

0610-221107-633 : IN.YE-5-H3.0-AMP-CE-V3U-GD5

$1,077.02

0610-221107-633

Boosted CPU, external memory and higher capacity relays
Light output is 12 V DC 1,3 A
Integration of the in.mix 300 color system on the main board
in.lu.me cables and LED lights can be connected directly to the in.ye-V3
New terminal block, onboard AMP connectors, evolved cable strain relief
Pathway to connected accessories with faster communication
Preloaded configuration allows fast and easy installation
in.touch 2 & in.touch3 module compatible
in.Temp Heat pump ready (extension board)
Supports 1, 2 and 3 phase input power
Standard 3.0 kW, 2” x 15” flow thru heater
Wide selection of keypads (Auto-detects selected keypad)
Swim mode for swim spa (k1000/1001 keypad needed)
Temperature probe is built into the heater
Overheat protection
Self-Diagnostic
Programmable filter cycles
IPx5 level of waterproofing
Dimensions: (W x H x D) 498 mm x 273 mm x 115 mm

Important: This in.ye system is designed to work seamlessly with in.temp heat pumps. To enable this compatibility, ensure the inclusion of the 0610-100006 in.ye-v3 extension board B-EXT-COM-RS485.

The add-on board 0610-100008 is required for configuration where the A6 output is being used.

Suggested retail price:
$1077.02 USD
